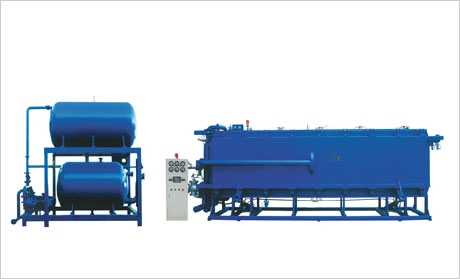

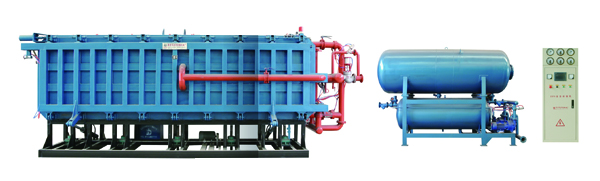

全自动真空板材机
产品介绍
机器采用优质型钢接焊而成，并经过时效热处理，使机器强度高，不变形，能承受高密度制品的膨胀力。
机器采用PLC全电脑触摸式显示荧屏控制，使机器的开模、合模、上料、加热、保温、真空、脱模顶出成品，实现全自化循环作业。
机器模腔表面采用特制铝合金主板，热传导效率高，抗拉强度好，寿命长。
机器采用高效率真空泵装置，穿透力强，粘接性好，用汽少，成型速度快，含水量低，能保证加厚泡塑板的内外一致性，生产效率成倍增长。
PRODUCT INTRODUCTION
1.The chine is welded with high quality steel and processed by ageing heat treatment.Therefore,it has the feature of high strength and non-defortion,and can endure the eansive force of high density products.
2. The chine uses the control of full-computerized touch type display.Therefore,its mould opening,mould closing,loading,heating,therl insulating,vacuum cooling,mould releasing to push out the product can achieve full-auto cycle operation.
3.The suce of chine mould cavity uses a special aluminum alloy in plate.It has high heat conductivity,high tensile strength and long life.
4.The mchine uses high effcient vacuum pump cooling device.It has strong penetration force,good viscosity,less ste consumption,high moulding speed,and low water content,which can ensure the consistency bet ween the inside and outside of fo plate and multiply the productivity.
技术参数
| 项 目 | 单 位 | PSB-QZ600 | PSB-QZ800 |
| 模腔内径尺寸 | mm | 6100x1240x1030(630) | 8120x1240x1030(630) |
| 模腔体积 | m³ | 7.79 | 10.37 |
| 制品密度/比重 | kg/m³ | 4.5-40 | 4.5-40 |
| 生产效率(标准条件） | piece/n | 7-11 | 7-11 |
| 蒸汽压力 | Mpa | 0.6-0.8 | 0.6-0.8 |
| 压缩空气进口通径 | mm | 80 | 80 |
| 蒸汽进口通径 | mm | 150 | 150 |
| 装机总功率 | Kw | 35 | 35 |
| 最大外型尺寸 | mm | 12600x3800x2900 | 15000x3900x2960 |
| 整机重量 | kg | 14500 | 16500 |
| 自动输送装置 | - | 可选optional | 可选optional |
| 电子称重、打印 | - | 可选optional | 可选optional |
